MTB Attachments Rock Breaker MTB 40 (8.5 Ton - 12.0 Ton)
MTB Attachments Rock Breaker MTB 40 (8.5 Ton - 12.0 Ton)
Regular price
$12,095.00
Regular price
$12,995.00
Sale price
$12,095.00
Unit price
per
Tax included.
Couldn't load pickup availability
MTB 40
Working Weight 460 kg
MTB hydraulic breakers cater for all applications and excavator classes.

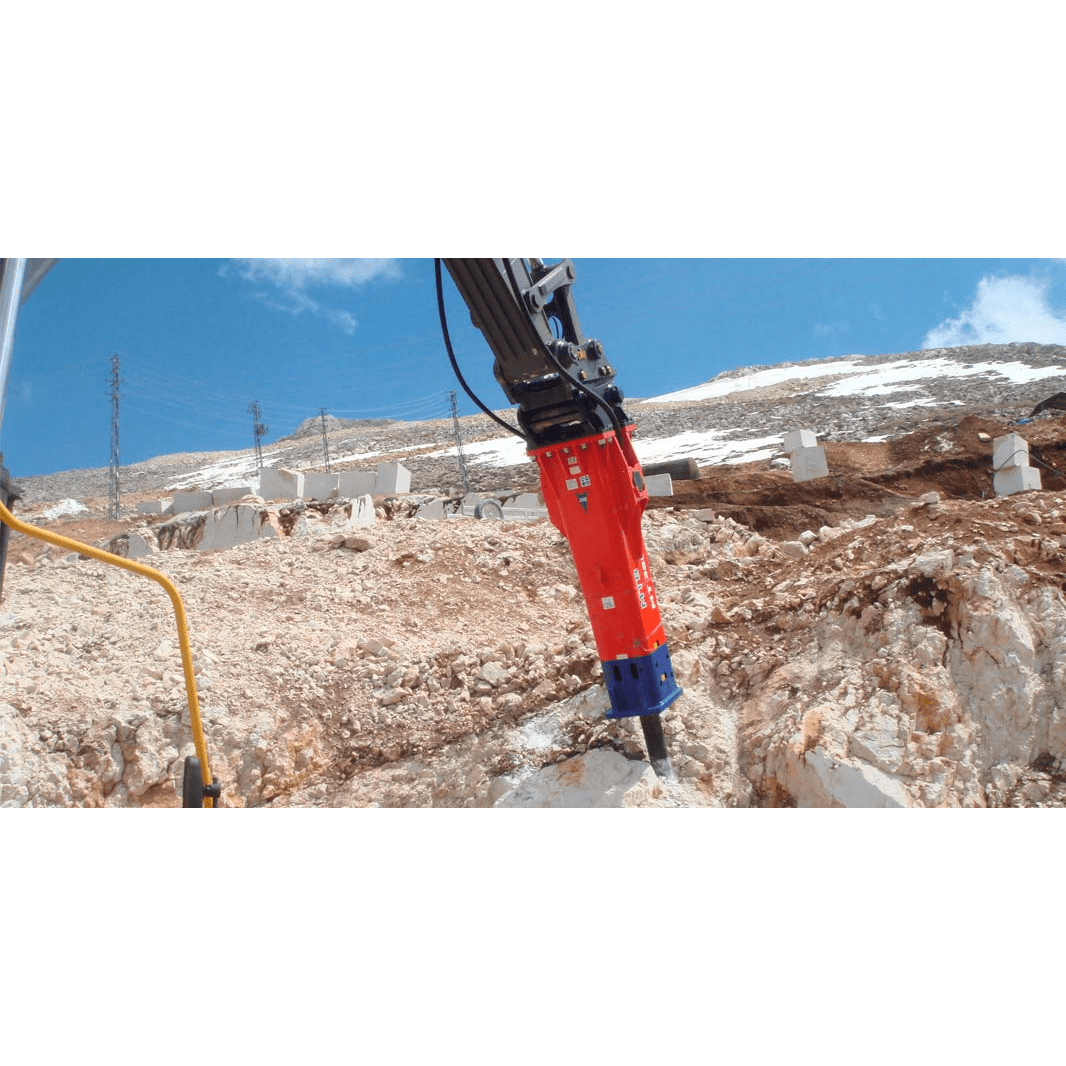

As MTB hydraulic breakers can be operated in any position, they can be used for any application such as oversize boulder breaking in quarrying and mining, overhead breaking in tunnelling, concrete breaking for demolition and specialised underwater projects.
With models from 100 kg to 7 tonne, supported by the largest attachments factory in the world and manufacturing over 90% of parts in house, MTB breakers are worlds ahead of other products.
| Impact Frequency |
450 ~ 1000 BPM |
| Operating Pressure |
120 bar |
| Relief Pressure |
170 ~ 180 bar |
| Back Pressure |
20 bar |
| Oil Flow Range |
45 ~ 100 LPM |
| Tool Diameter |
80 mm |
| Oil Temperature |
-20 ~ +80°C |
| Hydraulic Oil Viscosity | 15 ~ 1000 cst |
| Accumulator Gas Pressure |
15 bar |
| Carrier Weight | 4 - 13 T |
| DIAMETER | CLOSED FRAME |
| A | 310 mm |
| B | 1319 mm |
| C | 925 mm |
| D | 240 mm |
| E | 270 mm |
| F | 202 mm |
