The Earth Drill 35,000MAX-50,000MAX’s are the perfect choice for excavators between 17T-45T and just like all our planetary drives in our line up they are over engineered and built to last.
High quality hydraulic motors, output shaft bearings which are 50% larger than our nearest competitors comparable drive and the use of only high grade materials mean that your Earth Drill will have a long, reliable service life.
Standard with the 35,000MAX-50,000MAX series and unique to Auger Torque, the Non-Dislodgement Shaft is a single piece drive shaft assembled top down and locked into the Earth Drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment, not only for the operator but also any surrounding workers. This is a MUST-HAVE FEATURE for any safety conscious company.
The Auger Torque 2-Way Valve is an optional extra on this series of Earth Drills and will enable you to convert a single acting hammer circuit into 2-way auxiliary flow.
An optional Pressure Relief Valve is also available for this series of Earth Drills (not required for 50,000MAX). Safe guard your investment by protecting the hydraulic motor from backpressure and hydraulic pressure spikes.
Torque is amplified by using the unique Auger Torque planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.
High quality hoses are standard with this series of Earth Drills, hydraulic quick couplers are not included as we recommend direct plumbing to avoid flow restriction and to ensure optimal performance.

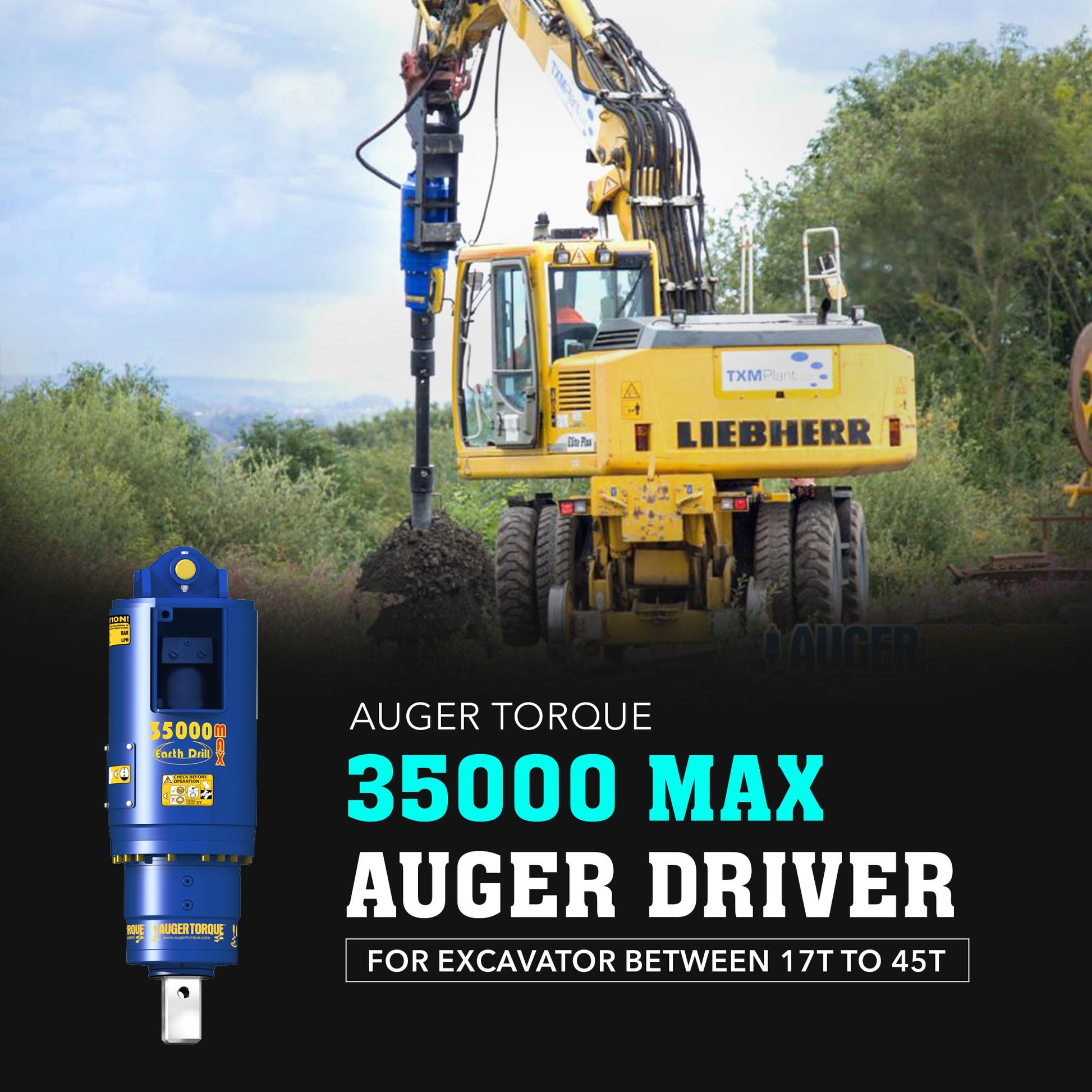

MODEL: 35000 MAX
- Oil Pressure Range: 180 - 310 Bar
- Torque Range: 20510 - 35323 Nm
- Oil Flow Range: 80 - 225 lpm *
- Speed Range: 11 - 31 rpm
- Hub Options: 110mm Square
- Height: 1411 mm
- Width: 406 mm
- Weight: 442 kg
- Hitch Options" Single Pin Hitch
- Double Pin Cradle Hitch
- Auger Range" PA
- Rec. Drilling Diameter Range" 300 - 1500 mm
