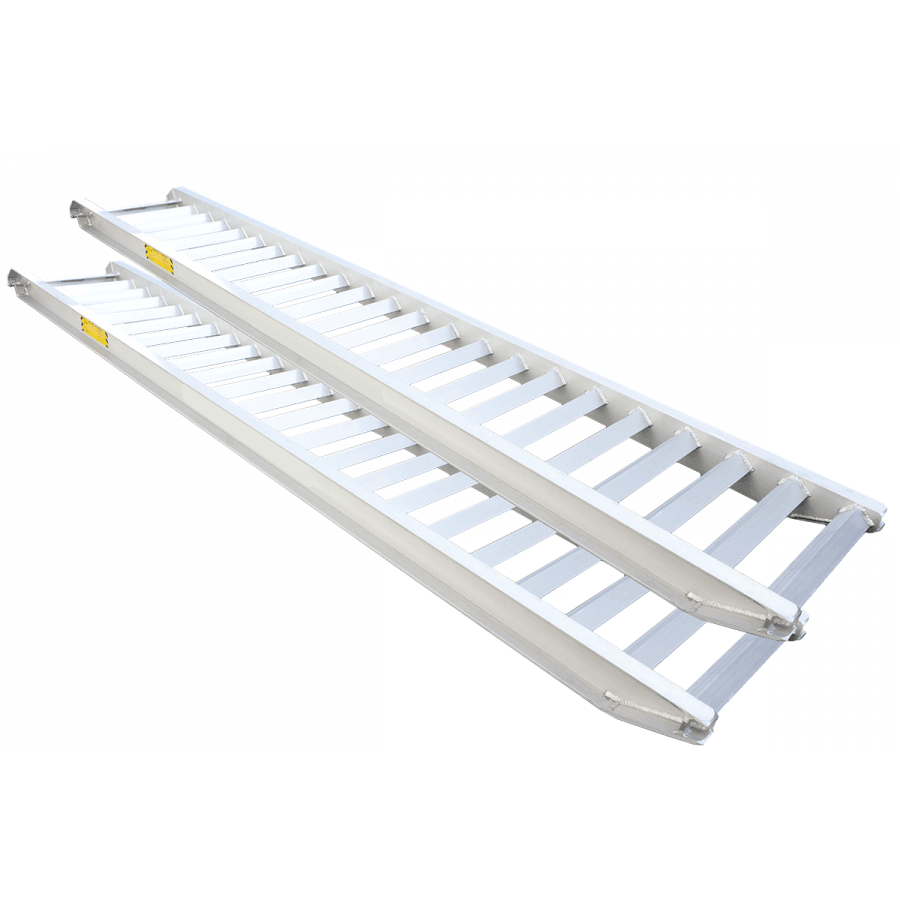

Attachment Warehouse Aluminium Ramps 3.0 Tonne - 3.5m Long
Attachment Warehouse Aluminium Ramps 3.0 Tonne - 3.5m Long
- ALUMINIUM RAMPS
- 3.0 Tonne - 3.5m LONG
- 325MM INTERNAL WIDTH
- 30KG PER RAMP
ALUMINIUM RAMPS
Attachment Warehouse Loading Ramps have long set the standard by which other ramps are judged.
With carrying capacities ranging from 3.0 to 8.0 tonnes, our ramps are over-engineered to ensure they can safely accept steel or rubber tracks and pneumatic tyres. This means you no longer need to have individual ramps to cope with various means of traction. One set of Attachment Warehouse Loading Ramps does it all.
We use only the highest grade alloy & unlike other companies, we don’t skimp on quality to bring you low-cost products so when other ramps start to wear ours will still be going strong.
All our ramps incorporate a design feature that prevents bottoming out when loading or unloading and & all ramps are supplied with forged locking pins to ensure safe and secure attachment to the loading plate.
Made in Australia for Australian conditions, best ramps on the market – Now you're talking!
Part No. | Track Width | Max Bed Height | Weight (per ramp) | Suitable for | |
1.5 Tonne (2.8m) |
51-2909 | 280mm | 1m | 24kg | Steel Tracks, Rubber Track and Pneumatic Tyres |
3.0 Tonne (3.5m) |
51-2901 | 325mm | 1.2m | 30kg | Steel Tracks, Rubber Track and Pneumatic Tyres |
4.0 Tonne (3.5m) |
51-2902 | 350mm | 1.2m | 36kg | Steel Tracks, Rubber Track and Pneumatic Tyres |
4.0 Tonne (3.9m) |
51-2904 | 350mm | 1.4m | 40kg | Steel Tracks, Rubber Track and Pneumatic Tyres |
4.5 Tonne (3.5m) |
51-2903 | 425mm | 1.2m | 40kg | Steel Tracks, Rubber Track and Pneumatic Tyres |
4.5 Tonne (3.9m) |
51-2907 | 425mm | 1.4m | 47kg | Steel Tracks, Rubber Track and Pneumatic Tyres |
5.0 Tonne (3.5m) |
51-2905 | 470mm | 1.2m | 49kg | Steel Tracks, Rubber Track and Pneumatic Tyres |
6.0 Tonne (3.5m) |
51-2906 | 500mm | 1.2m | 55kg | Steel Tracks, Rubber Track and Pneumatic Tyres |
8.0 Tonne (3.5m) |
51-2908 | 500mm | 1.2m | 68kg | Steel Tracks, Rubber Track and Pneumatic Tyres |
